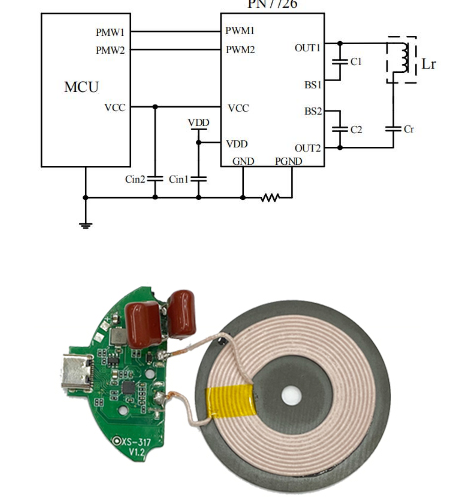

7726 is an intelligent power chip for wireless charging. The chip integrates the driver and four high-efficiency power-level field effect transistors, and has built-in bootstrap high-voltage PMOS and built-in 5V/50mA LDO, which has adaptive dead-time function. The chip also integrates the functions of undervoltage protection, overtemperature protection and output short circuit protection. The core is packaged with QFNFC3×3 and SOP8-PP, and the heat dissipation performance is improved by heat sink at the bottom.

■ Wide power supply voltage range: 3V ~ 12V

■ Output power is 20W.

■ Up to 500kHz operating frequency

■ Built-in bootstrap high-voltage PMOS transistor

■ Integrated 5V LDO(50mA) for MCU power supply.

■ Input pins are compatible with 5V and 3.3V control signals.

■ Working temperature:-40 ~ 125 C.

■ Comprehensive protection function: under-voltage protection of power supply, built-in over-temperature protection and built-in output short-circuit protection.

■ QFNFC3×3, SOP8-PP package
